PRODUCTS

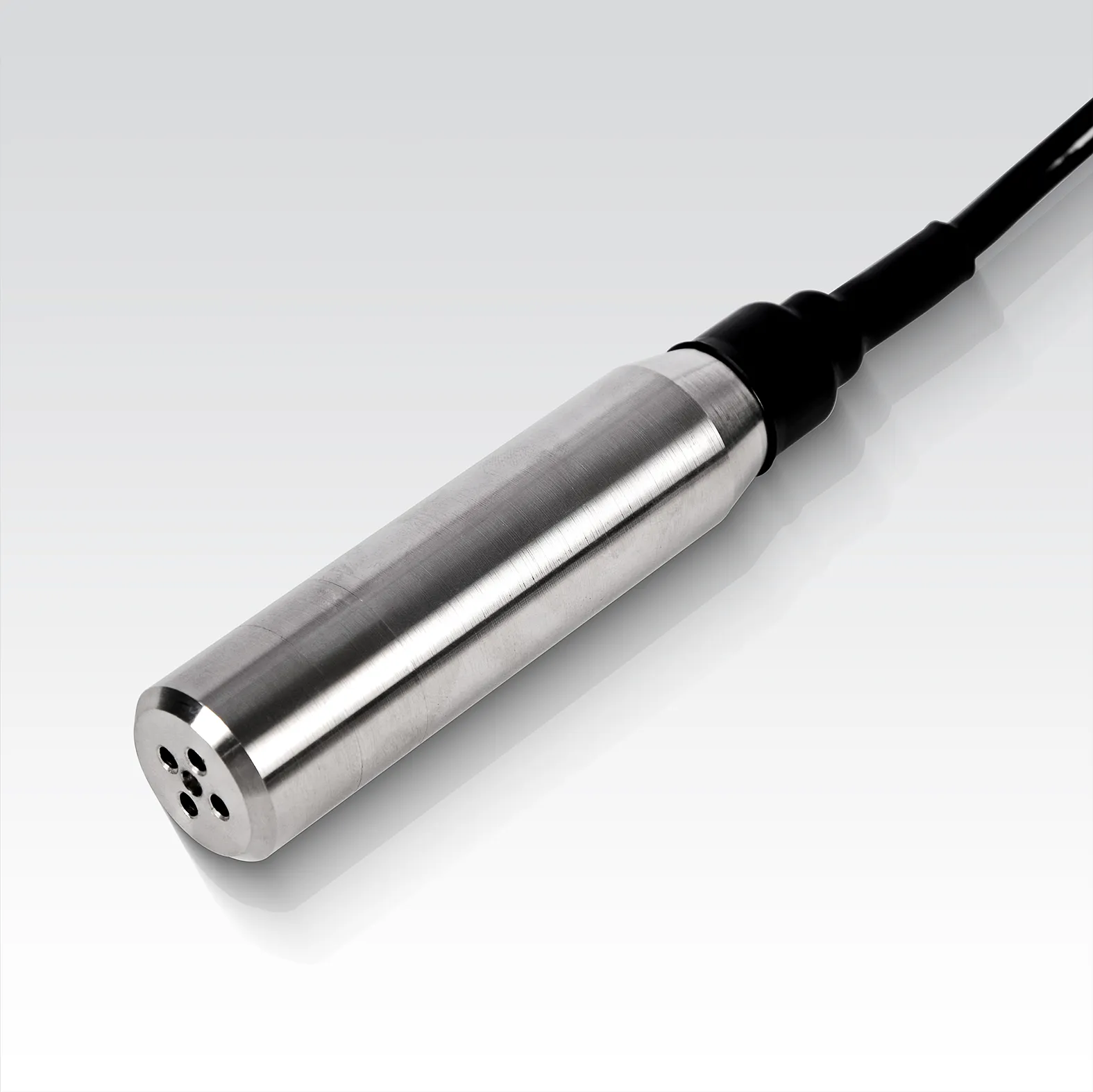

Water - PT200

  • Measurement Range :0~1m H2O, 0~200m H2O .
  • Medium:Water.
  • Operating Voltage 12 – 36 v dc.
  • Output Signal :4-20 mA - 2 Wire.
  • Accuracy :±0.5%F.S.
  • Product Temperature :(-10~60)℃.
  • Environmental Temperature(0~75)℃.
  • Protection Grades :IP65.
  • Long Term Stability :0.2% and 0.5%/FS.
  • Overload Resistance :(U-10)/0.02Ω.
  • Ingress Protection :IP68.

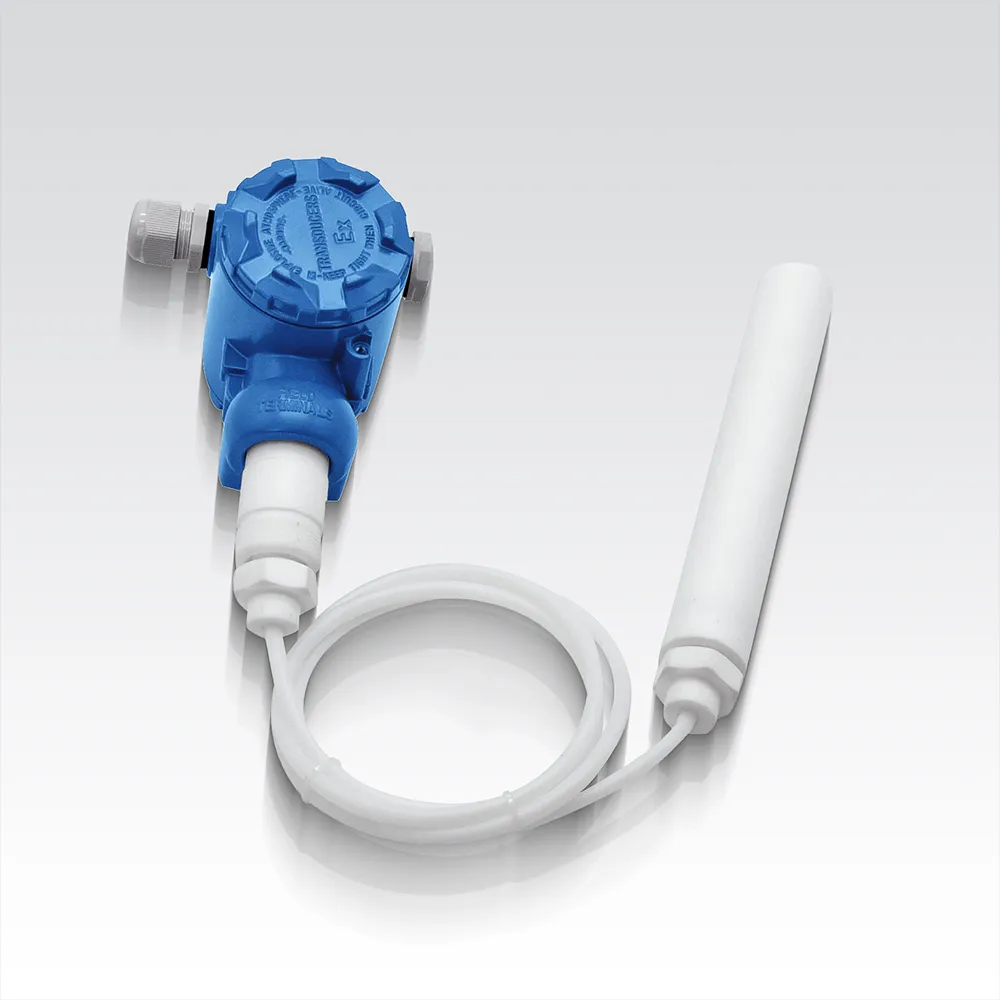

Acid - PT202

  • Measurement Range :0~1m H2O, 0~200m H2O.
  • Medium:All corrosive medium compatible with material 1Cr18Ni9Ti.
  • Operating Voltage 12 – 36 v dc.
  • Output Signal :4-20 mA - 2 Wire.
  • Accuracy :±0.5%F.S.
  • Product Temperature :(-10~60)℃.
  • Environmental Temperature(0~75)℃.
  • Protection Grades :IP65.
  • Long Term Stability :0.2% and 0.5%/FS.
  • Overload Resistance :(U-10)/0.02Ω.
  • Ingress Protection :IP68.

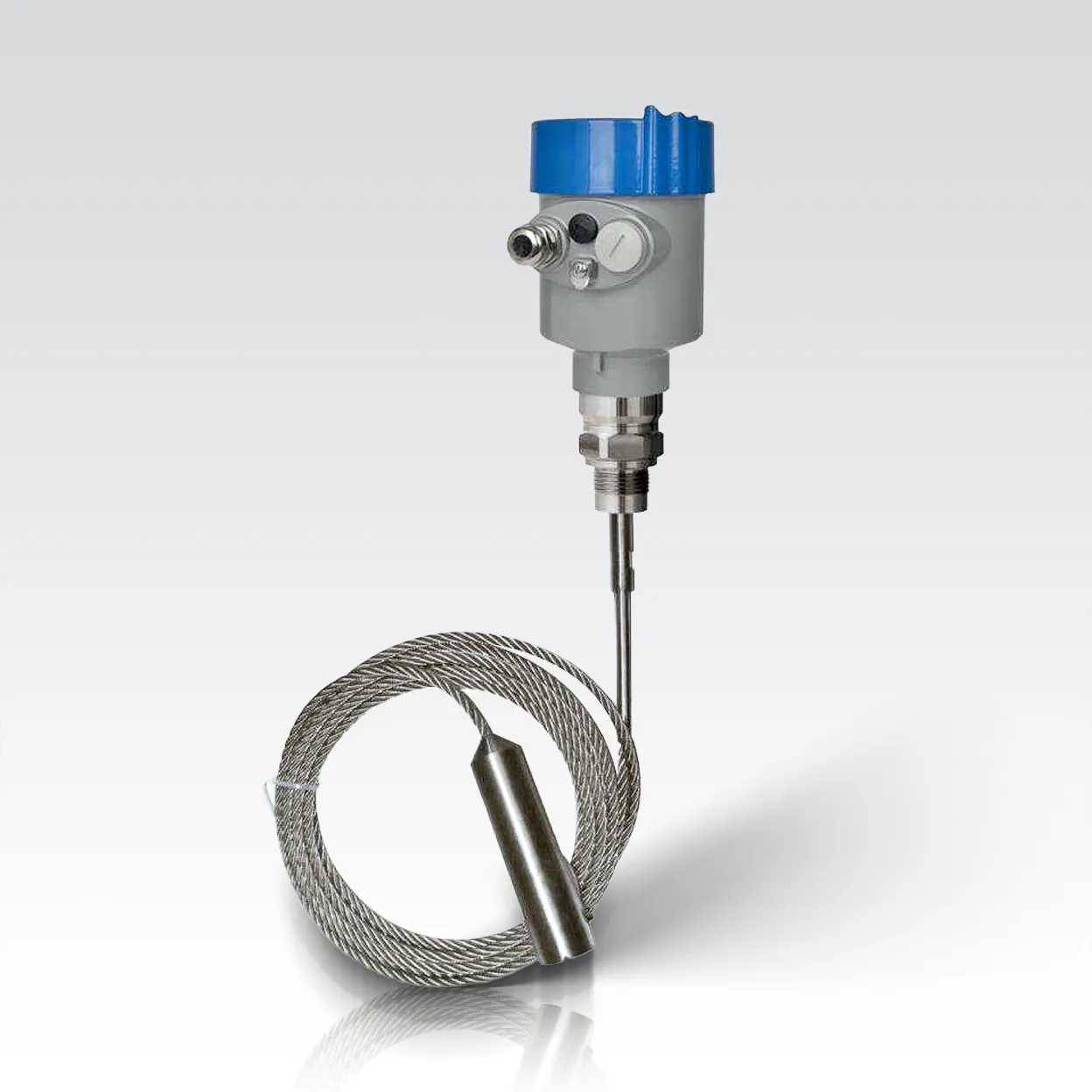

Viscos Product - PT705

  • Measurement Range : 0-30m.
  • Frequency : 500 Mhz – 1.8 GHz.
  • Operating Voltage : 12 – 36 v dc.
  • Output Signal :4-20 mA - 2 Wire/HART.
  • Accuracy :± 10mm.
  • Antenna : Single cable or single Pole Antenna.
  • Environmental Temperature :(0~75)℃.
  • Protection Grades :IP65.
  • Long Term Stability :0.2% and 0.5%/FS.
  • Overload Resistance :(U-10)/0.02Ω.
  • Ingress Protection :IP68.

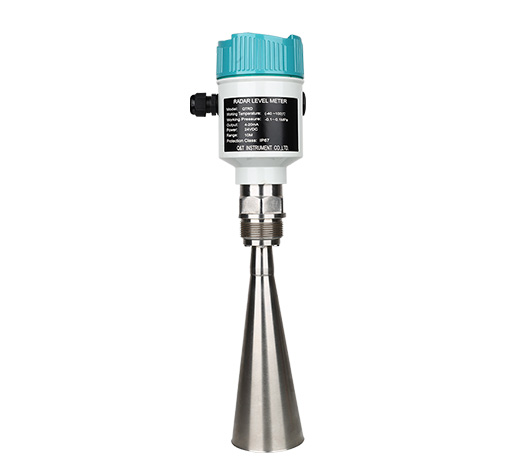

Radar

  • Measuring Range :20m 30m 40m 50m 70m.
  • Application : All kinds of corrosive liquid/Powder.
  • Process Connection :Thread, Flange Process.
  • Temperature :-40℃~130℃ .
  • Process Pressure :-0.1~0.3 MPa .
  • Accuracy :± 5mm.
  • Frequency Range :26GHz .
  • Supply :2-wire(DC24V) / 4-wire(DC24V /AC220V).
  • Signal Output : 4... 20mA /HART (2-wire / 4-wire) RS485/Modbus.
  • Protection :IP67.
  • Pressure :Normal pressure.

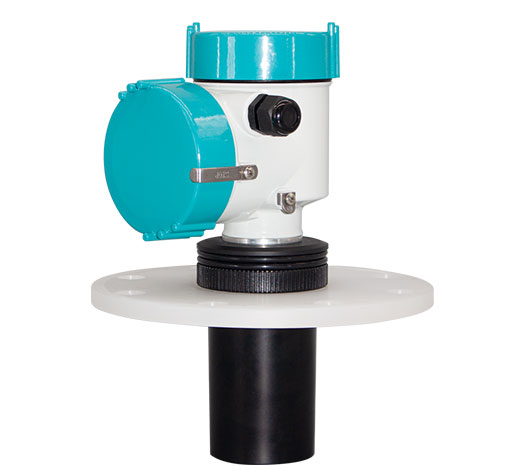

Ultrasonic

  • Level Range :4,6,8,10,12,15,20,30m.
  • Accuracy :0.5%-1.0%.
  • Resolution :3mm or 0.1%.
  • Display :LCD Display.
  • Analog Output :2 Wire 4-20 mA.
  • Power Supply :DC24.
  • Environmental Temperature :Transmitter -20~+60℃ , Sensor -20~+80℃.
  • Communication :HART.
  • Protection Class :Transmitter IP65(IP67 Optional),Sensor IP68.
  • Probe Installation :Flange , Thread.
