PRODUCTS

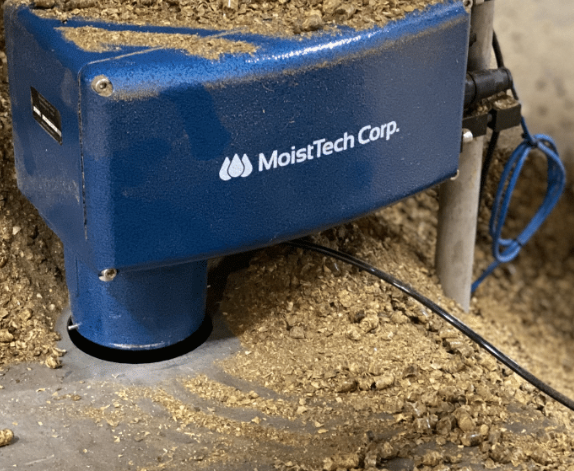

IR3000 ON-LINE SENSOR
- 1, 2 or 3 Moisture Ranges: Min 0.01%, Max 97%.
- 0-0.1%, 0-100% PPM Ranges Subject to Application.
- 4-16 in (10-40 cm).
- Approximately 1.5-in (3.7 cm) diameter on sample.
- 12.1 in x 7.1 in x 6.4 in (31 cm x 18 cm x 16 cm).
- 80-260 VAC (50/60 HZ), Optional 24VDC.
- Three self-powered isolated 4-20mA outputs, RS-232/485, Ethernet TCP/IP.
- Profibus, Profinet, DeviceNet, Ethernet IP.

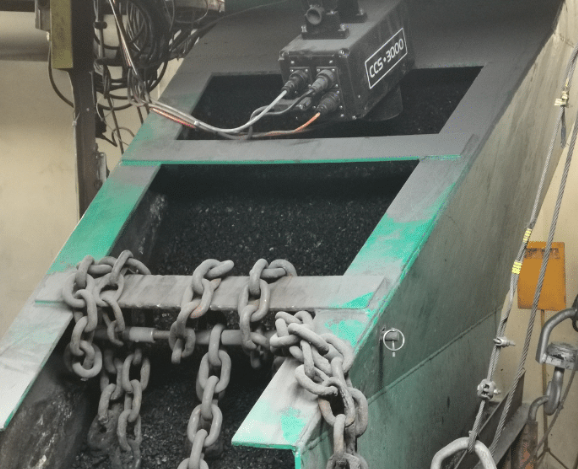

CCS3000 ON-LINE COKE/COAL/SINTER PRODUCTS
- Power:AC 110-220V.
- Moisture Range 0-95%.
- Accuracy +/-0.1% to 0.01%
- Repeatability +/-0.1% Of measured value.
- Dimensisions 31cm * 18cm * 16cm.
- Weight 7 Kilograms (15.5 lbs).
- Output (3)*4-20mA.

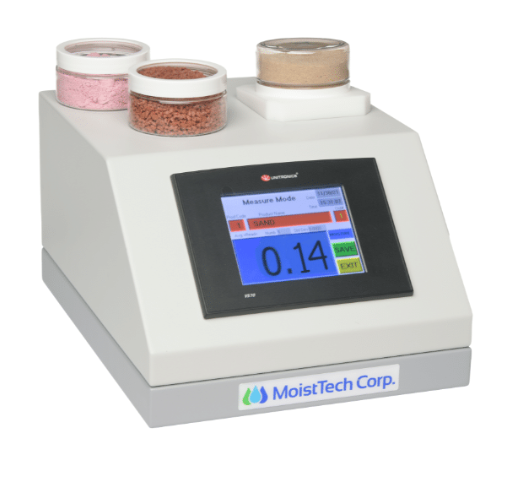

858 AT LINE LABORATORY SENSOR JAR SAMPLE
- 1, 2 or 3.
- 0-0.1%, 0-100% and PPM Ranges Subject to application.
- 6-inch. LCD with touch-screen input.
- 50 Standard, Stored in non-volatile Flash memory.
- Durable Steel with beige powder coat paint.
- 381cm D x 305cm W x 203cm H.
- 115-230VAC 50/60Hz 30W.
- 2-Ethernet TCP/IP Ports.
- Data Transfer to PC Based Excel Worksheet.
- Factory Pre-Calibrated (Routine re-calibration is not required).
